Never stop exploring

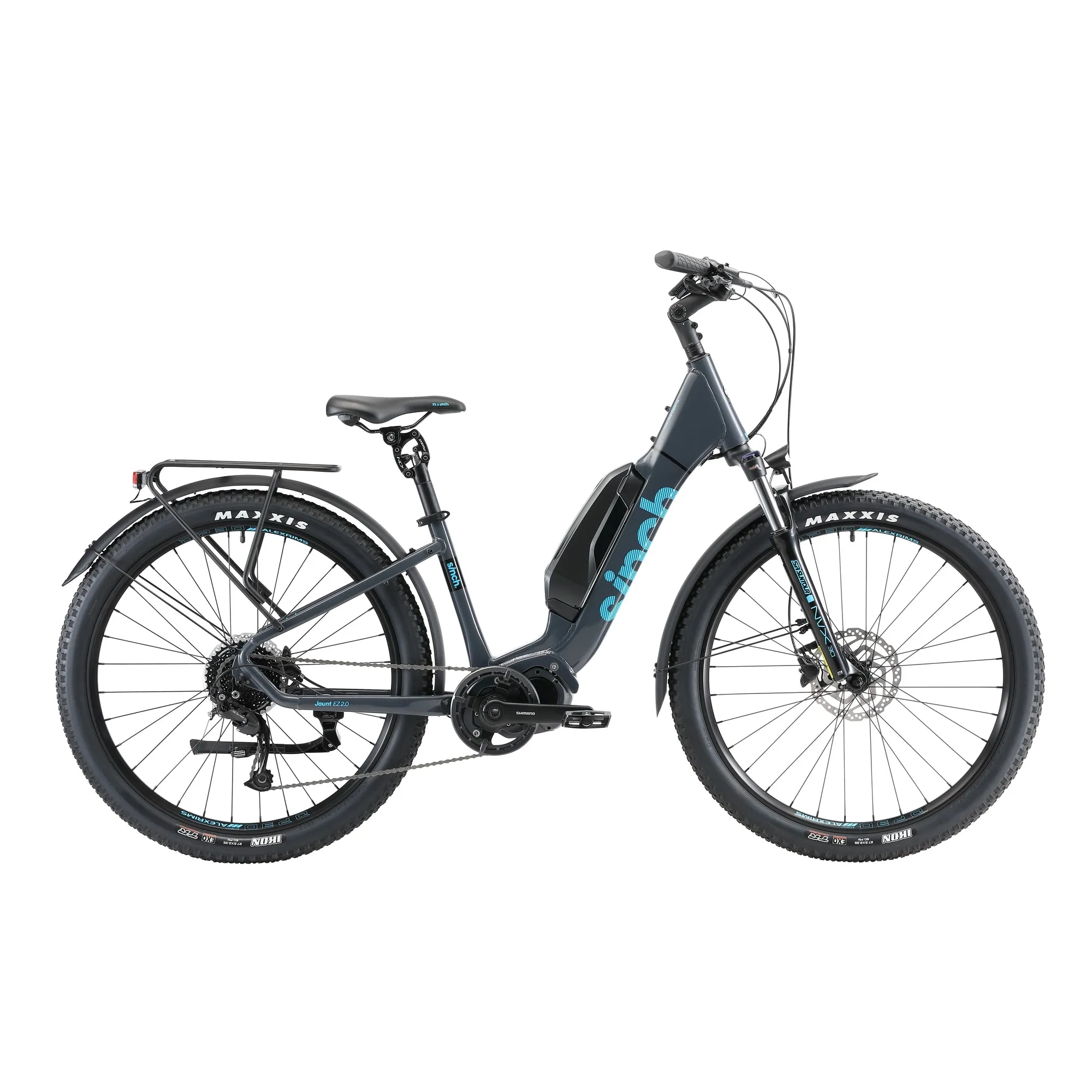

The Jaunt EZ 2 has a comfortable easy step-through frame with an upright riding position for a safe and comfortable ride equipped with carrying and lighting solutions making it great for getting around town and enjoying cycle ways. Quality and reliable components throughout will give you the confidence to get out and explore. A powerful intuitive pedal assist Shimano drive unit will help you sustain speeds up to 32km/hr and allows you to travel up to 185km on one full charge depending on rider assist mode, terrain and weather conditions. Never stop exploring!!
What’s there to love
- Shimano E6100 mid-drive motor will assist your riding speed up to 32 km/hr
- Shimano STEPs E8010 504Wh Battery extends your riding range
- SR Suntour NCX Suspension seat post with 50mm of travel for a comfortable ride
- SR Suntour NVX30 Suspension fork with 80mm of travel and hydraulic lockout
- Shimano Alivio 9 Speed components with Shimano Hydraulic disc brakes
- Maxxis Ikon 27.5 x 2.35” tyres with EXO puncture protection for trouble free riding
- Spanninga Front and rear lights with integrated mud guards and rack solutions
Due to global supply shortages some small specifications changes may be made shipment to shipment. Please contact us to confirm
SPECIFICATIONS
Frameset | |
| Frame | 6061 E Bike Specific Step-through Aluminum Frame |
| Front suspension | SR Suntour NVX30, 80mm travel with preload adjustment and hydraulic lockout |
Motor | |
| Drive Unit | Shimano STEPS DU-E6100 250watt 60Nm, 32km/hr |
| Battery | Shimano Steps BT-E8010 36V 14Ah 504Wh |
| Display | Shimano Steps SC-E6100 Cycle Computer. |
Wheels | |
| Hubs | Shimano TX-505 32H |
| Rims | Alex DP30 Double Wall 27.5" 32H |
| Tyres | Maxxis Ikon 27.5x2.35" Foldable, 60tpi, EXO/TR |
Drivetrain | |
| Shifter | Shimano Alivio SL-M3100 9 Speed |
| Derailleur | Shimano Alivio RD-M3100 9 Speed |
| Crankset | Shimano FC-E6100 with 38T Chainring and double Chainguard |
| Cassette | Shimano Cassette HG200 11-36T 9 Speed |
| Chain | Shimano CN-E6070 9 Speed e-bike specific |
| Pedals | Sinch Alloy comfort |
Components | |
| Brakeset | Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors |
| Saddle | Sinch Comfort 199mm Gel Dual density |
| Seat Post | SR Suntour NCX Suspension, 50mm travel, 31.6mm |
| Bar | Sinch Alloy Comfort, 26mm rise, 30° sweep, 680mm |
| Stem | Sinch Alloy 31.8mm, Adjustable |
| Grips | Sinch Comfort Gel Lock-on dual density |
Accessories | |
| Lights | Spanninga Axendo 25 Front, Solo Rear |
| Accessories | Mudguards, Rear Carrier, Kickstand |
| Sizes Weight | XS, S/M, M/L = 27.5" 22.0kg (S/M Size) |
Geometry | XS | S/M | M/L |
| A - Seat Tube | 340 | 385 | 430 |
| B - Top Tube Horizontal | 575 | 595 | 615 |
| C - Chain Stay | 480 | 480 | 480 |
| D - Headtube Length | 175 | 175 | 185 |
| E - Head Angle | 68.5 | 68.5 | 68.5 |
| F - Seat Angle | 73 | 73 | 73 |
| G - Wheelbase | 1097.6 | 1145.1 | 1165.9 |
| Stack | 654.2 | 654.2 | 663.5 |
| Reach | 375 | 395 | 412.2 |
| Crank Length | 170 | 170 | 170 |
| Stem Length | 90 | 90 | 90 |
